Dec Scanner

Description

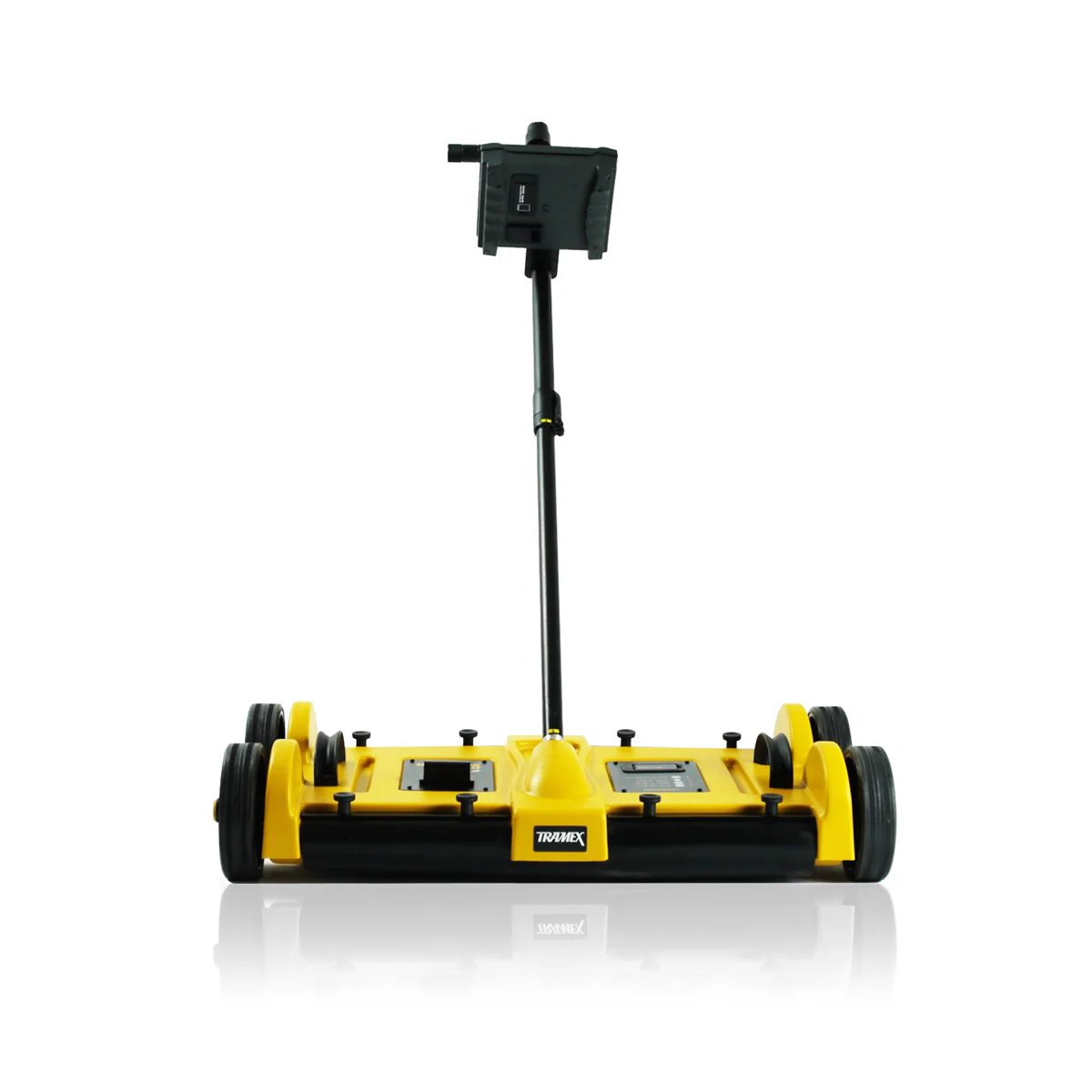

Dec Scanner is a mobile non-destructive impedance scanner designed for the instant surveying of moisture conditions in roofing and waterproofing systems per ASTM D7954. Ideal for water leak detection in roofing materials and integrity testing. Roofing moisture meters detect leaks in roofing materials as well as measure moisture.

Space

• Size: 762 mm x 400 mm x 158 mm
• Scanning area: 609 mm x 394mm

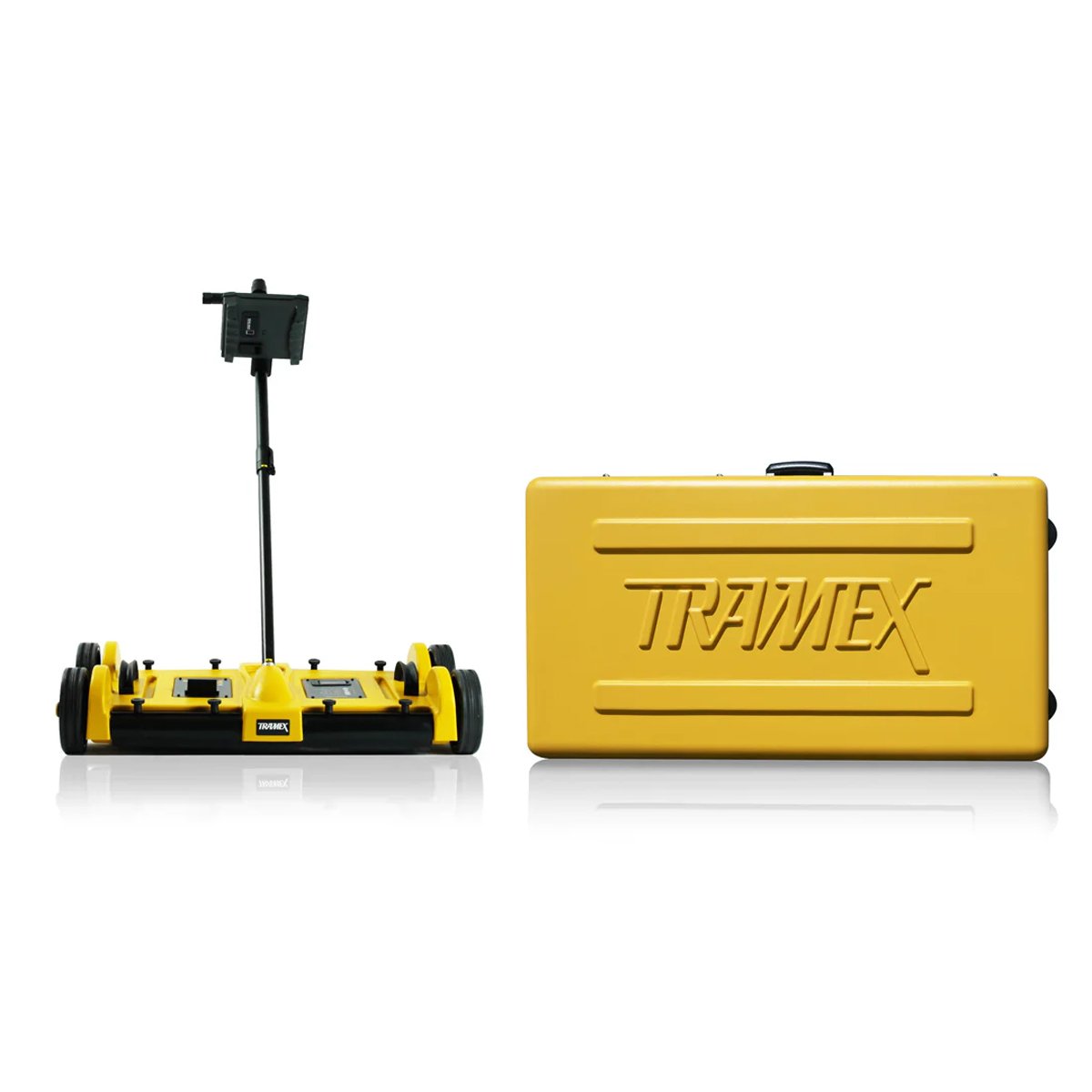

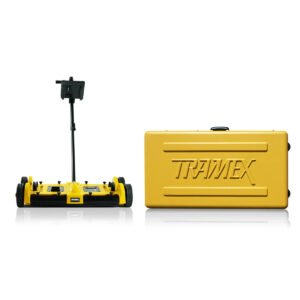

• Carry case: 940mm x 508 mm x 270mm
• Weight: Dec Scanner 9.95 Kg
• Weight: Carry Case 9.9 Kg
• Total Weight: Dec Scanner in Carry Case 21.1 Kg
• Outer packaging carton weight: 2 Kg
• Total shipping weight: 23.1Kg
• Dimensional shipping weight: 30 Kg
• Display: Analog Measuring Range: 0 to 100
• Comparative Max. depth of penetration: 152 mm
• Power Supply: 2 x 9 Volt PP3 Batteries (included)
• Limitations: Some EPDM, Butyl rubber roofing and other conductive (metal) roofing.

Features

• Complies to ASTM D7954
• Non-destructive impedance moisture meter
• Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses

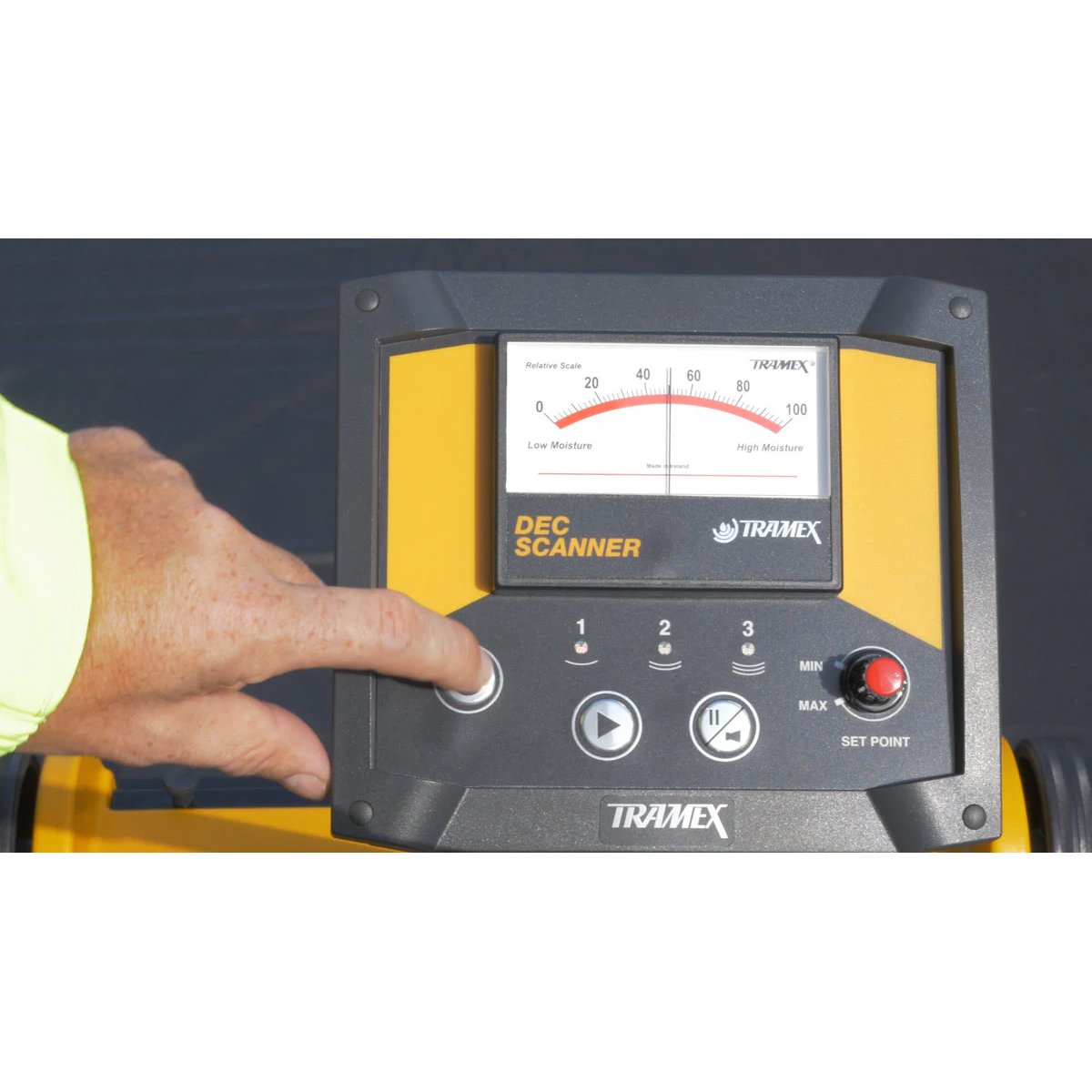

• Ergonomic easy-reach and easy to operate control panel
• Leak tracing, water leak detection, problem sourcing, and an instantaneous and clear indication of roof condition.
• Fast readings over large roof areas in a short time frame
• Work in normal daylight hours
• Faster and more user friendly than nuclear meters
• Easy and safe to use with no regulatory restrictions or operating license required
• Dependable solid state circuitry and rugged molded body for long-term reliabilit Battery powered – 9 Volt PP3
